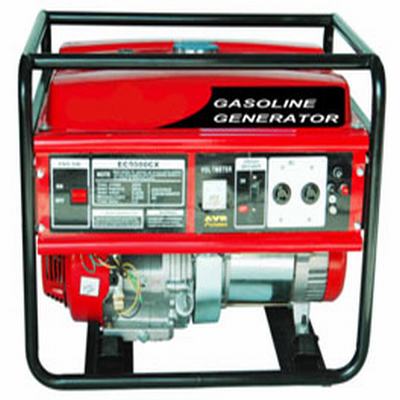

EC6500CX
Model型號 EC6500CX
Rated frequency (Hz) 額定頻率 50/60
Rated voltage (V) 額定電壓 110/120/220/230/240/380
Rated output power (kW) 額定輸出功率 5
Rated speed (rpm) 額定轉速 3000/3600
DC output直流輸出 12V / 8.3A (option)（選配）
Power factor (cosφ) 功率因數 1
Phase相數 Single-phase單相
Noise level [dB(A)/7m] 噪音/7米處 70~75
Dimension (L×W×H) (mm) 外形尺寸 680×510×540
Packing size (L×W×H) (mm) 包裝尺寸 700×530×570
Net weight (kg) 凈重 85
Structure model結構類型 Open-frame開架式
Engine model發動機型號 YS188F(E)
Engine type發動機類型 Single-cylinder, 4-stroke, air-cooled,
OHV, gasoline engine
Starting system啟動方式 Recoil /Electric手拉式反沖啟動/電啟動
Fuel tank capacity (L) 油箱容積 25
Fuel type燃油 Automotive unleaded gasoline車用無鉛汽油
Lube brand 潤滑油型號 SAE15W40 (above CC grade) （CC級以上）
Low oil pressure alarm system低油壓警示系統 With有
20”FCL (set) 裝箱數 20尺柜 135
Rated frequency (Hz) 額定頻率 50/60
Rated voltage (V) 額定電壓 110/120/220/230/240/380
Rated output power (kW) 額定輸出功率 5
Rated speed (rpm) 額定轉速 3000/3600
DC output直流輸出 12V / 8.3A (option)（選配）
Power factor (cosφ) 功率因數 1
Phase相數 Single-phase單相
Noise level [dB(A)/7m] 噪音/7米處 70~75
Dimension (L×W×H) (mm) 外形尺寸 680×510×540
Packing size (L×W×H) (mm) 包裝尺寸 700×530×570
Net weight (kg) 凈重 85
Structure model結構類型 Open-frame開架式
Engine model發動機型號 YS188F(E)
Engine type發動機類型 Single-cylinder, 4-stroke, air-cooled,
OHV, gasoline engine
Starting system啟動方式 Recoil /Electric手拉式反沖啟動/電啟動
Fuel tank capacity (L) 油箱容積 25
Fuel type燃油 Automotive unleaded gasoline車用無鉛汽油
Lube brand 潤滑油型號 SAE15W40 (above CC grade) （CC級以上）
Low oil pressure alarm system低油壓警示系統 With有
20”FCL (set) 裝箱數 20尺柜 135
